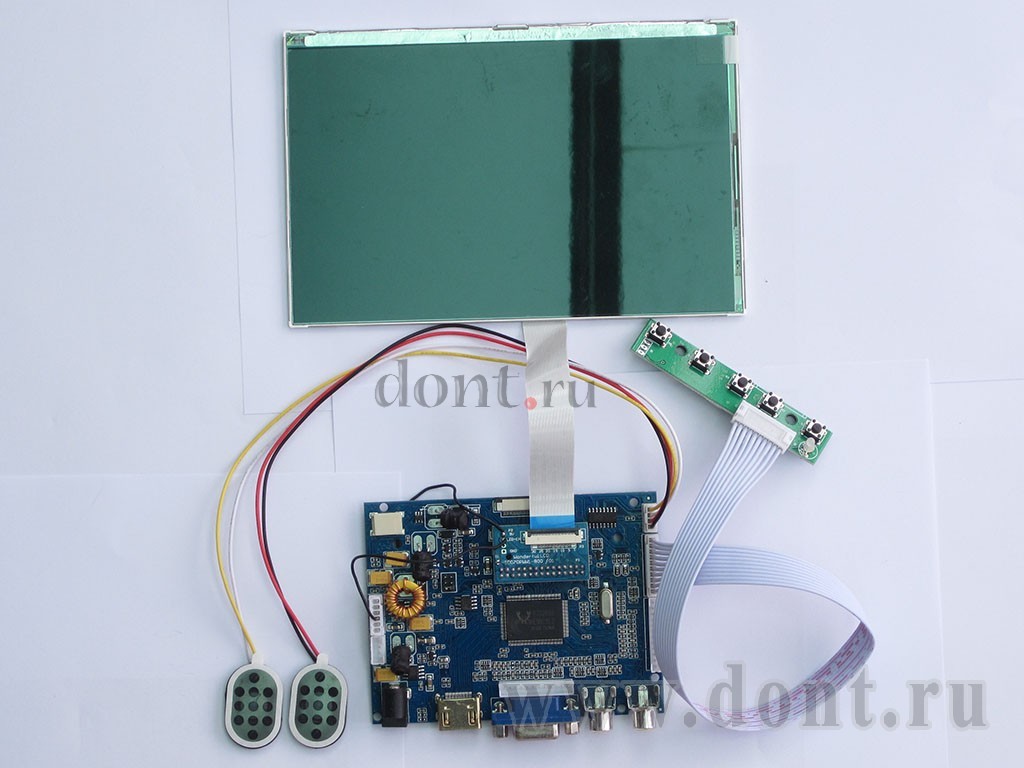

HannStar HSD070PWW1 HDMI VGA Audio converter без тачскрина

• Power with 5-12VDC (recommended)

• 700mA power draw at 12V

• 16:10 display ratio

• Resolution: 1200 x 800

• Visible area: 150mm x 95mm 16:10

• Display dimensions: 162mm x 104mm x 4mm (6.4" x 4.1" x 0.2")

• Brightness: 400cd/m2

• Contrast: 800:1

• Uses an HSD070PWW1 display

• Auto-detects between VGA, HDMI and Composite

• Not HDCP compatible - it cannot be used with 'secured' HDMI sources

Power draw from combined display+HDMI driver when backlight is on

• 5V: 980mA

• 6V: 780mA

• 7V: 660mA

• 8V: 575mA

• 9V: 515mA

• 10V: 450mA

• 11V: 415mA

• 12V: 380mA
